Large-Complex Injection Molds

Home > INJECTION & DIE-CASTING TOOLING > Large-Complex Injection Molds

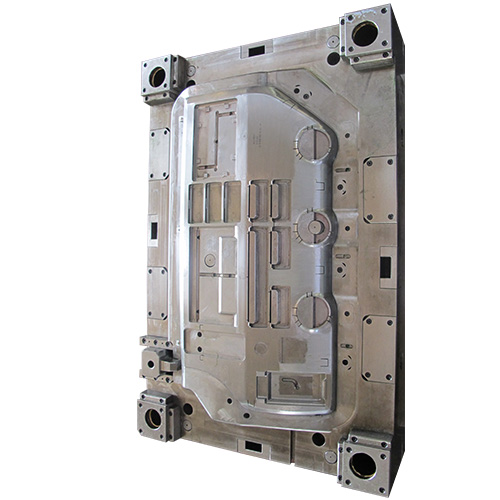

Large-Complex Injection Molds

Large-Complex injection molds generally with big physical parameter (length & weight more than 1200mm & 10T accordingly) , multiple mechanical actions, challenge tolerance and extensively used to automotive, heavy truck, architecture,household appliance industries ect.

We have been developing a great many top-quality and large-complex automotive interior & exterior plastic toolings for Toyota, BMW, Mercedes and Honda ect. that meet and exceed even the most stringent standards relying on cutting-edge technology and state-of-the-art equipment s from tooling design to manufacturing. Our large-complex injection molds are most frequently used in presses , but not limited to 750T to 2200T

Add to Inquiry PDF

Large-Complex Injection Molds Additional Features

Large physical mold dimension is just one of common features, what we have been specializing are tight tolerance guarantee, scientific injection gates & cooling system set up, warping & deformation controlling, robust mold intensity and long mold life assurance ect.

Mold World is experienced and be in incorporating the following into your toolings:

Formability analysis of geometry shape.

Hot runners with deliberately flow analysis.

Innovative cooling waterlines.

Warping & deformation prevention.

Reliable side core-pulling mechanism.

Stronger tooling impact resistance strength.

Reasonable cycle time.

Good operability with automation.

Available for the quick mold change systems.

CONTACT A MOLD EXPERT

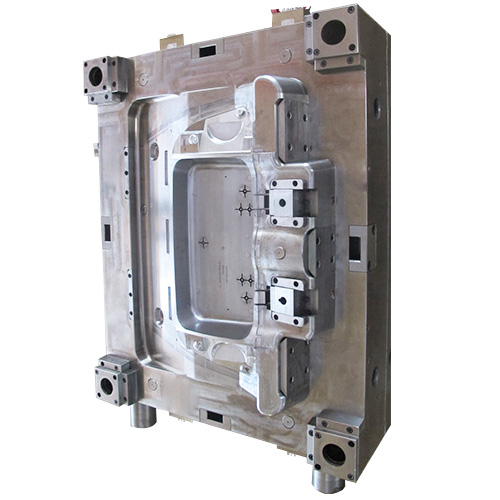

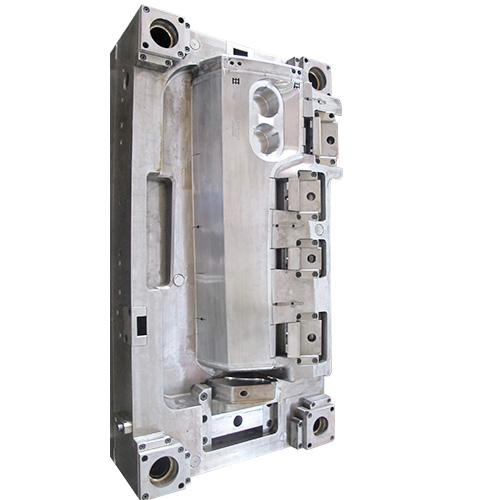

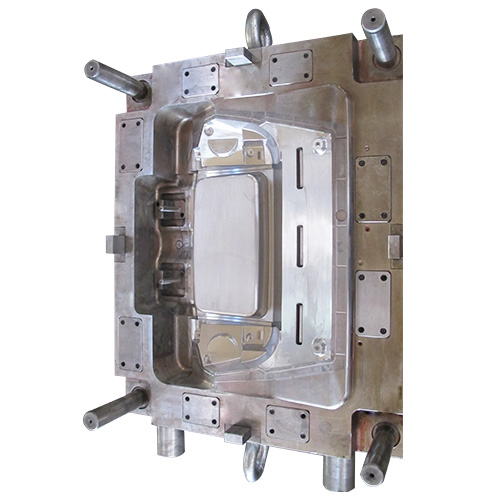

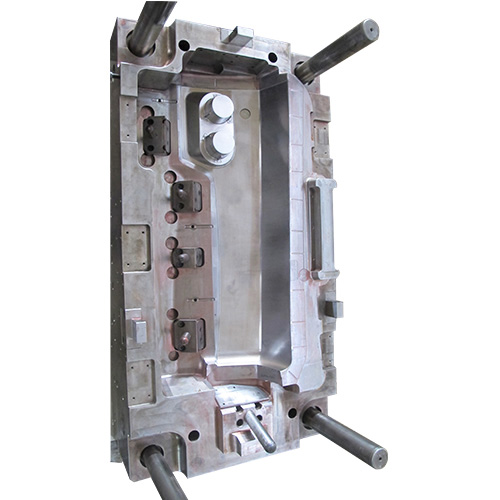

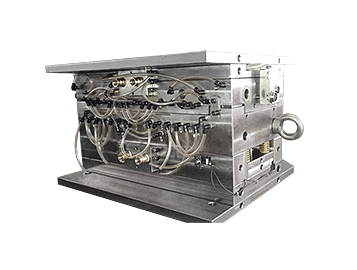

Large-Complex Injection Molds Customer Example

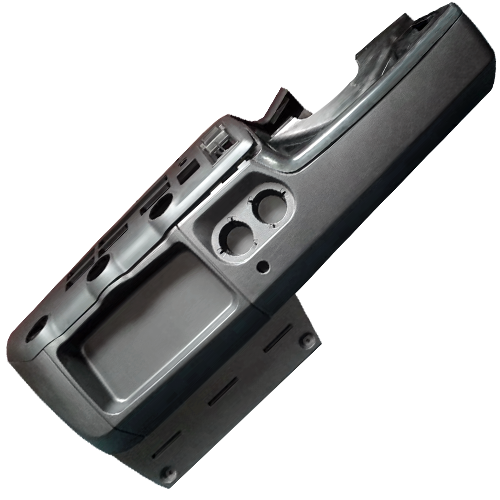

The customer came to Mold World during the earlier beginning of the COVID-19 and requested for urgent assistance to make a mold to produce automotive glove box for EV(electric vehicle). We quickly made DFM report and interacted with them to fast finished part’s geometry improvement and produced mold in just two and half of months, which was actually quicker than the requested ETD of PO.

Automotive Glove Box Tooling Parameter:

Hasco Standard Components.

Part Size: W 430X L 807 x H 490 mm.

Material: PP

Insert Steel: ASSAB 8407 HRC 50~52,Hardened beryllium Copper.

Shrink: 13‰

Manifold: Hot Runners with 4 nozzles.

Ejector Stroke: 250mm with hydraulic cylinders.

Total weight of the mold: 15.4T

External Mold Dimensions: W 996 x L 1496 x H 1246(W 39.21” x L 58.90” x H 49.06”)

Ship & Payments : CIF,FOB & T/T,L/C,West Union, Paypal
